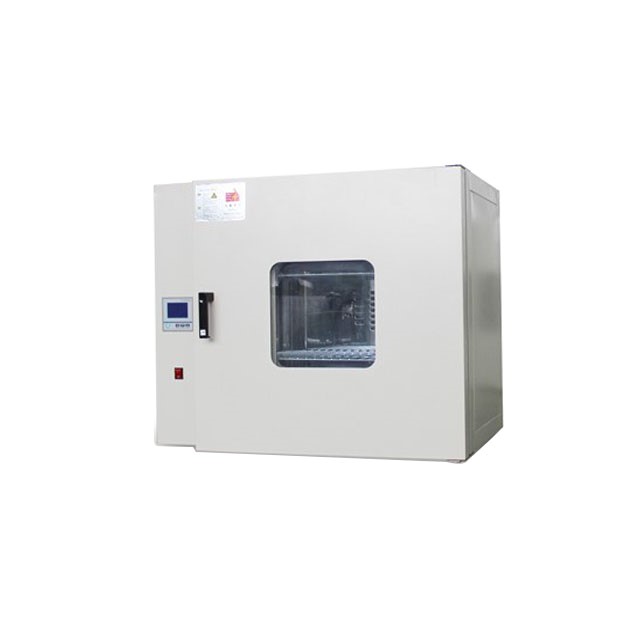

DZLG series Desktop Drying Oven
Price range: $621.00 through $1,691.00
Drying oven,Blast drying oven,Hot air oven
Payment Methods
Need custom specs or volume pricing?
For more specifications or custom options, please contact our sales team for an accurate quote.
Description
| Model | DZLG-9023 | DZLG-9053 | DZLG-9123 | DZLG-9203 | DZLG-9023A | DZLG-9053A | DZLG-9123A | DZLG-9203A |
|
Workroom size (W*D*H)mm |
300*300*270 | 420*350*350 | 550*350*550 | 600*525*600 | 300*300*270 | 420*350*350 | 550*350*550 | 600*525*600 |
| Outer Size
(W*D*H)mm |
580*480*440 | 700*530*520 | 860*530*730 | 910*725*780 | 580*480*440 | 700*530*520 | 860*530*730 | 910*725*780 |
| Average Power(W) | 700 | 1050 | 1750 | 2100 | 800 | 1200 | 1900 | 2300 |
| N.W./
G.W. |
39kg/44kg | 47kg/52kg | 74kg/81kg | 98kg/107kg | 39kg/44kg | 47kg/52kg | 74kg/81kg | 98kg/107kg |
| Temperature control range | RT+10~250℃ | RT+10~300℃ | ||||||
| Shelves | 2PCS | |||||||
| Temperature resolution | 0.1℃ | |||||||
| Temperature fluctuations | ±0.5℃ | |||||||
| Temperature uniformity | ±2%℃ | |||||||
| Power supply | AC220V±10%/50Hz±2% | |||||||
| External material | high quality cold rolled steel | |||||||
| Internal material | 304 stainless steel | |||||||
- Temperature control system adopts microcomputer control technology.
- High quality nickel-chromium alloy heater with low power attenuation.
- The unique air duct design allows the airflow to circulate in a specified direction, and the temperature uniformity in the working chamber changes little.
- Insulation material is made of high quality high temperature resistant glass fiber.
- It is made of 1.0 thick steel plate full-welded and polished, and the surface is spray-coated. The cabinet sprays 5% salt spray test for up to 500 hours (national standard 48 hours), with superior corrosion resistance.
- The inner liner is made of high quality SUS304 stainless steel plate with a thickness of 1.0mm.
- The product uses liquid crystal display.
- Shelf grid height can be adjusted.
- The door has a double tempered glass observation window for users’ observation.
- Nano-material door seals make the machine performance superior.
- High temperature resistant fan for longer life.
- Timing range: 0-9999 minutes.
- Products passed ROHS environmental certification, CE certification.
- Upgradeable networking or program control.(Optional)
Additional information
| Model | DZLG-9023, DZLG-9053, DZLG-9123, DZLG-9203, DZLG-9023A, DZLG-9053A, DZLG-9123A, DZLG-9203A |
|---|
